GreenSmart 6″ to 12″ Large Flow Diverter Valves

GreenSmart series Large Flow diverter valves are designed for collection and diversion for Alternate Nonpotable Water Source systems where large flow rates are required.

Greensmart 6-12" PVC Rainwater Diverter

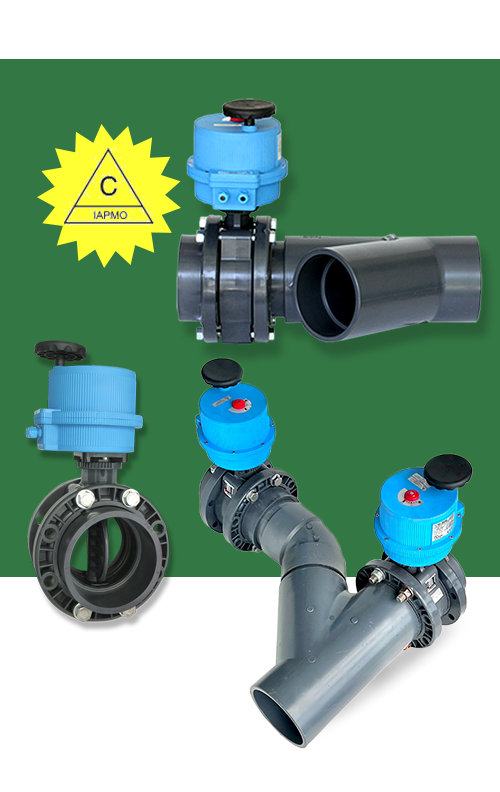

6″,8″, 10″, 12″ Large Flow Diverter Valves

product overview

IAPMO tested and listed, IGC 352-18a. All valves are electric actuated, UL Approved low voltage 24vdc. Valves come with Fail-Safe rechargeable battery back-up as standard and can be wired to work with float switches, alarms, automatic diversion, control panels, LED’s, smart apps. Etc.

A debris-filtering device installed upstream from the valve maybe required. Check with your local authority having jurisdiction.

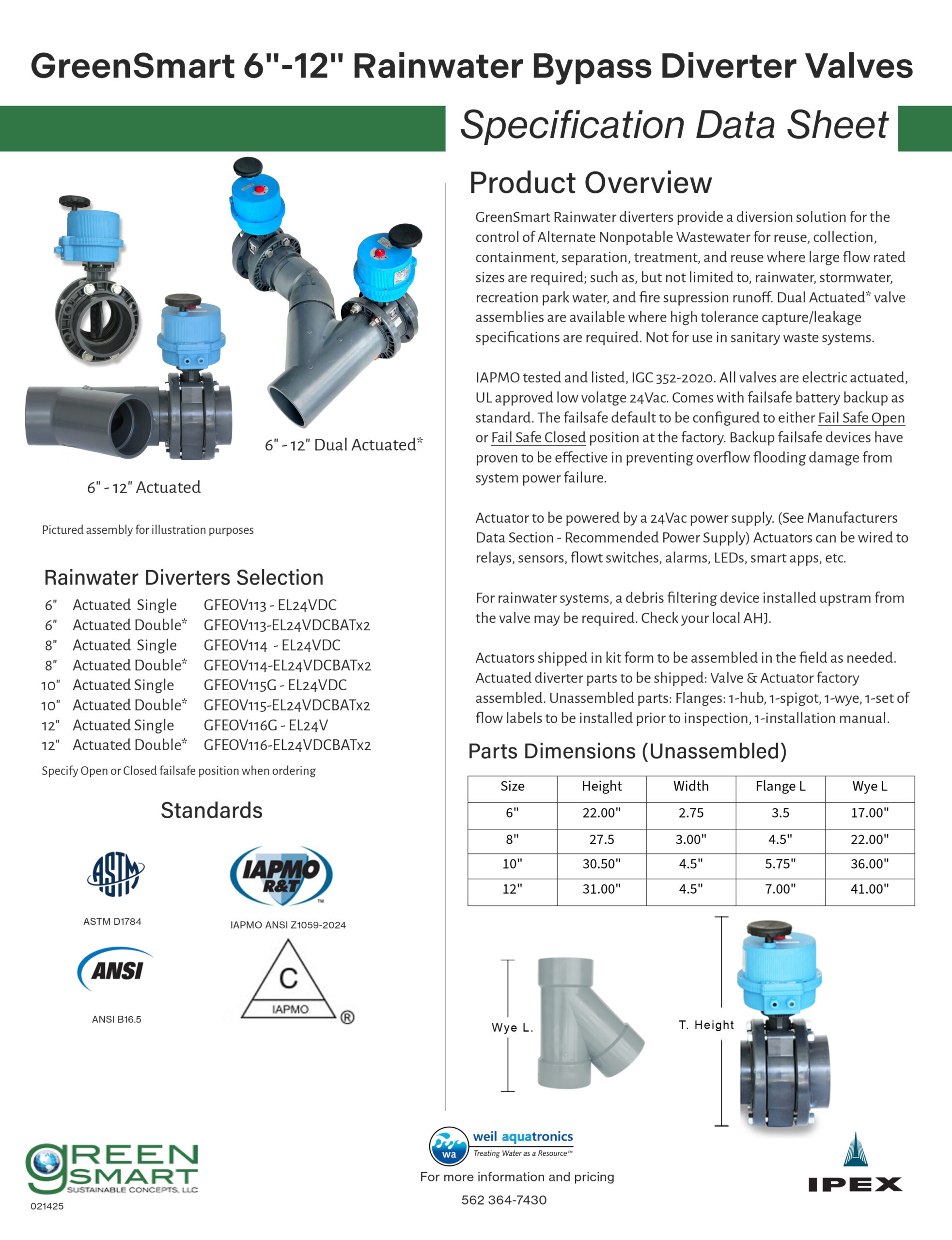

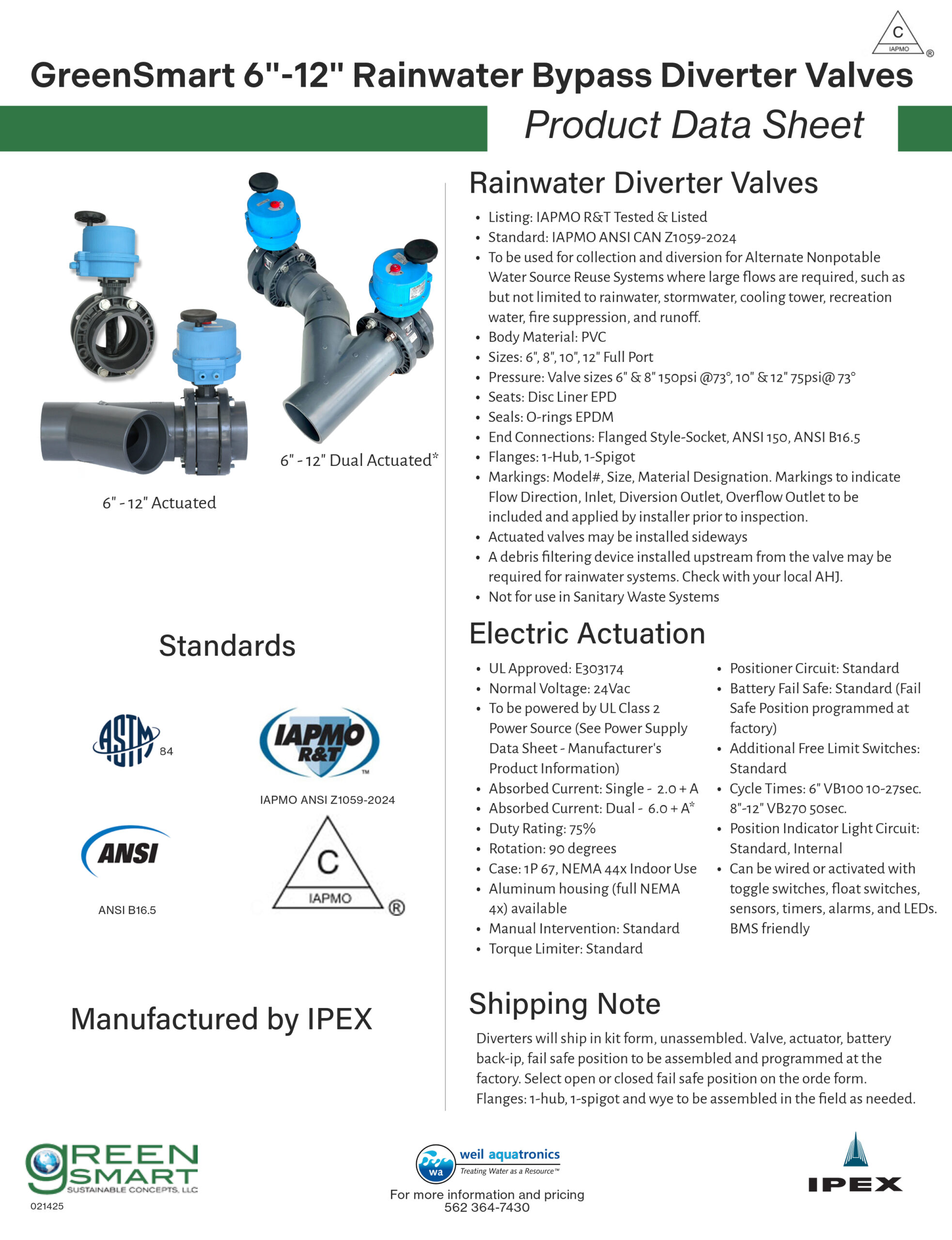

Product Specifications
Listing IAPMO R&T Tested and Listed (PENDING)
Standartd IAPMO IGC 352-2018
To be used for Rainwater and Stormewater in Alternate Nonpotable Water Source Systems
Body Material PVC
Size 6″, 8″, 10″, 12″ full port sizes
Pressure All valves sizes 2-1/2″ – 8″ shall be rated at 150 psi @ 73°
All valves sizes 10 “- 12” shall be rated at 75 psi @ 73°
Seats Disc liner of EPD
Seals O-ring seals of EPDM
End Connections Flanged-Style Socket, ANSI 150, ANSI B16.5
Actuation 24vdc, UL approved Class 2
Fail Safe Battery Backup: Standard
  • model #
  • size and material designation
  • markings to indicate Flow direction, Inlet, Diversion Outlet and Overflow Outlet to be supplied and applied during installation
Possible Requirement A debris filtering device installed upstream from the valve may be required. Check with your local authority having jurisdiction
Approval UL Approved E303174
Normal Voltage 24V ac/dc
Power Source To be powered by UL class 2 Power source supplied by installer
Absorbed Current 1.0A
Duty Rating 75%
Case IP 67, NEMA 44X  Indoor use
Aluminum Housing (full NEMA 4x) available from factory
Rotation 90 degrees
Manual Intervention Standard
Battery Fail Safe Available from factory
Torque Limiter Standard
Positioner Circuit Standard
Additional Free Limit Switches Standard
Cycle Times 6″ vB1 10-27 sec.
8″ – 12″ VB270 50 sec.
Position Indicator Light Circuit Standard, but internal to the actuator
Additional Information Can be wired and activated by toggle switches, float switches, timers, alarms, smart phone apps, and LEDs
Additional Free Limit Switches Standard
Diverters will ship in kit form, wye, and valve body, not assembled.

Valve, actuator, and battery back-up will be pre-assembled at the factory.


ASTM D1784 / ASTM D2466 / ASTM D2467 / ASTM D2464 / ASTM F1498 / ASTM F439 / ASTM F437


ANSI B1.20.1/ANSI B16.5



GreenSmart Diversion Systems are Code Approved

IAPMO Tested and UPC Listed.
